| Model | HS-N46-1 | HS-N46-2 |
| Internal Size (W*D*H) | 940*600*660mm | 1150*600*660mm |
| External Size (W*D*H) | 1100*750*2250mm | 1300*750*2250mm |
| Tested Opening | Safety Height ≤200 mm (8") |
| Max Opening | 420 mm (17") | 420 mm (17") |
| Inflow Velocity | 0.53±0.025 m/s |
| Downflow Velocity | 0.33±0.025 m/s |
| Pre-Filter | Washable |
| HEPA Filter | Two, 99.999% efficient at 0.3 um. Filter life indicator. |
| Front Window | Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV |
| Noise | NSF49≤61dB / EN12469≤58 dB |
| UV Lamp | 30W× 1 | 18W× 1 |
| UV timer, UV life indicator, emission of 253.7 nanometers |
| for most efficient decontamination. |
| Fluorescent Lamp | 21W× 2 | 21W× 2 |
| Illumination | ≥1000Lux |
| Consumption | 700W | 850W |
| Waterproof Sockets | Two, total load of two sockets: 500W |

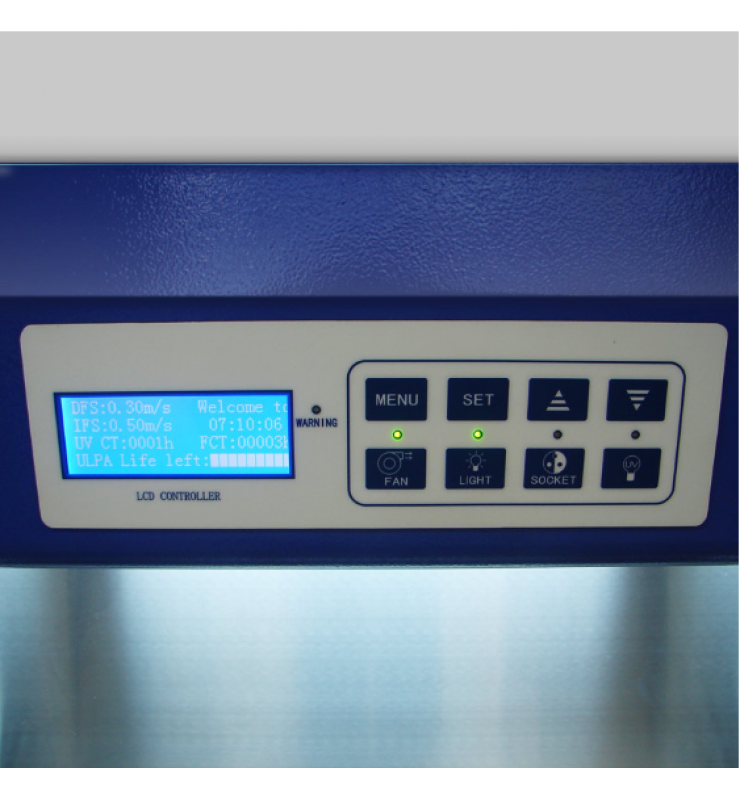

| Display | LCD display: exhaust filter and downflow filter pressure, filter and |
| UV lamp working time, inflow and downflow velocity, |
| filter life, humidity and temperature, system working time etc. |
| Control System | Microprocessor |
| Airflow System | 0% air re-circulation, 100% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity. |
| Exhaust Duct | 4 meters PVC duct, Diameter:300mm |
| Material | Work Zone: 304 stainless steel |
| Main Body: Cold-rolled steel with anti-bacteria powder coating. |
| Work Surface Height | 750mm |
| Caster | Footmaster caster |
| Power Supply | 110/220V±10%, 60/50Hz (110V/60Hz is not applicable to LT-BSC-1800IIB2-X) |
| Standard Accessory | Fluorescent lamp, UV lamp*2 ,base stand, remote control, foot switch, |
| exhaust blower, exhaust duct, drain valve, |
| waterproof sockets*2, pipe strap*2. |
| Optional Accessory | Water and gas tap |
| Gross Weight | 246kg | 276kg |
| Package | Main Body | 1220*1000*1840mm | 1460*1050*1800mm |
| (W*D*H) |
| Exhaust Blower | 970*810*630mm | 970*810*630mm |
| (W*D*H) |
